Measurement
Field balancing of rotors in one and two planes
Measurement of overall vibrations for evaluation of the machine condition
Frequency analysis for identification of machine faults and damages
Start-up and run-down analysis of the first harmonic for the detection of machine resonance's
Envelope spectrum mesurements
Display of the overall vibrations as well as of the first harmonic vs. time
Visualization of vibration time-signature
Bump test measurements
Ball and roller bearing fault detection

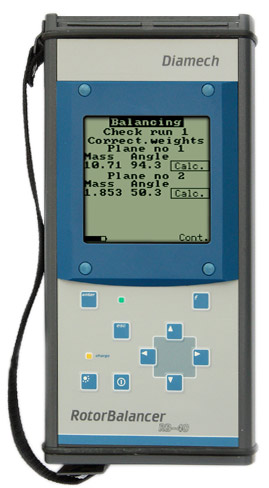

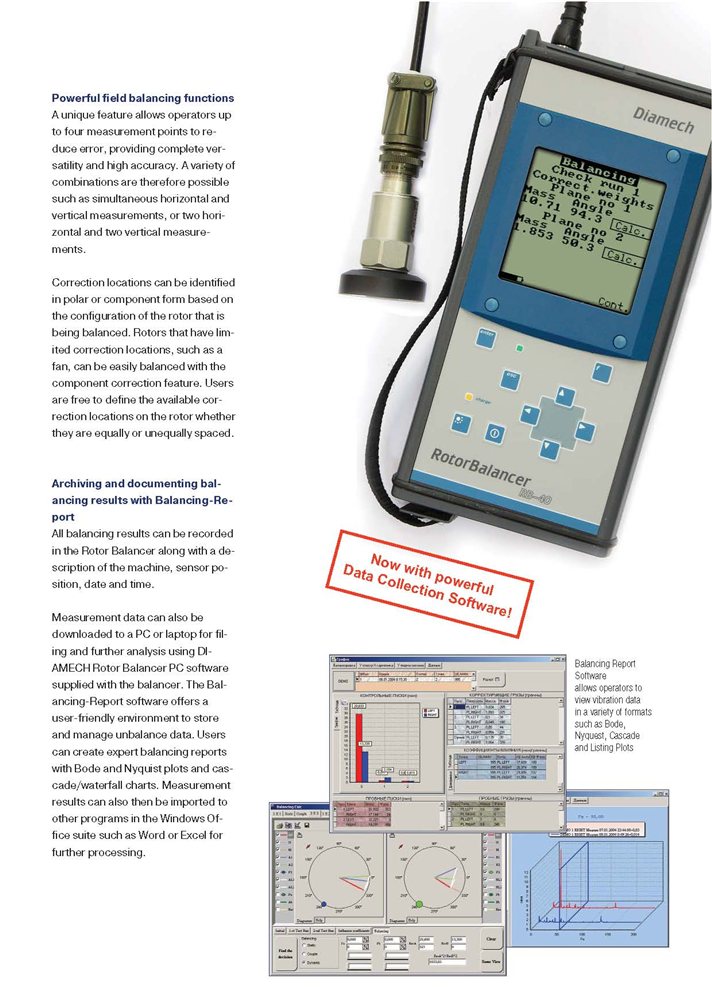

Field balancing
Easy-to-understand operator dialog, integrated balancing calculator, polar presentation of unbalance and test run vectors and printed balancing reports via PC/Laptop
Balancing rotor speed: 120 to 20,000 rpm
Number of balancing planes: 1 or 2
Number of measuring points: up to 4 (enables optimized balancing procedures)
Archiving of rotor influence coefficients to enable simplified balancing procedures in repeat situations
